描述
●帶指示燈開關
●單刀單擲
●額定電壓電流
16A 250V~T85/55 50Hz
16A,125/250Vac,50/60Hz
1/4Hp,125/250vac,50/60Hz
●獲得認證:ULcUL,TUV,CQC
●溫度限:85℃ Max.
●耐高壓:2500Vac
●絕緣電阻:＞100MΩ
●壽命：10000cycles
●接粗電阻:＜ 50mΩ
●PTI:175V
●適用器具類別:Ⅱ
●防護級別:IPOO

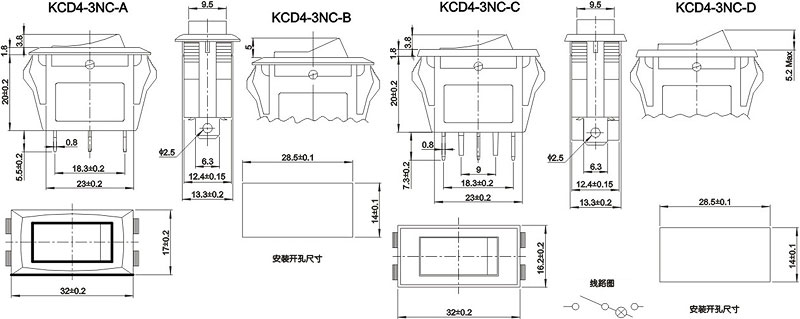

尺寸圖

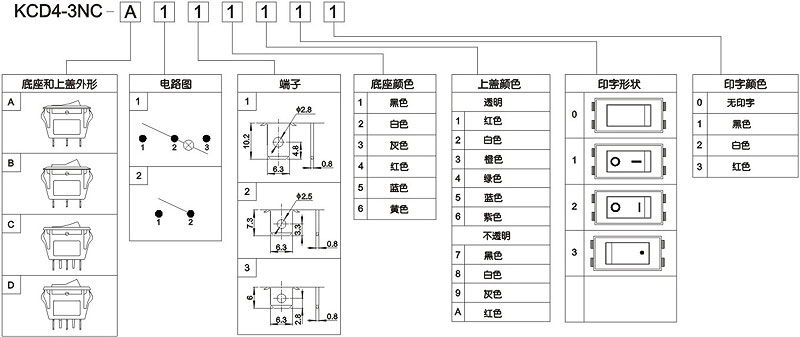

標識訂貨
